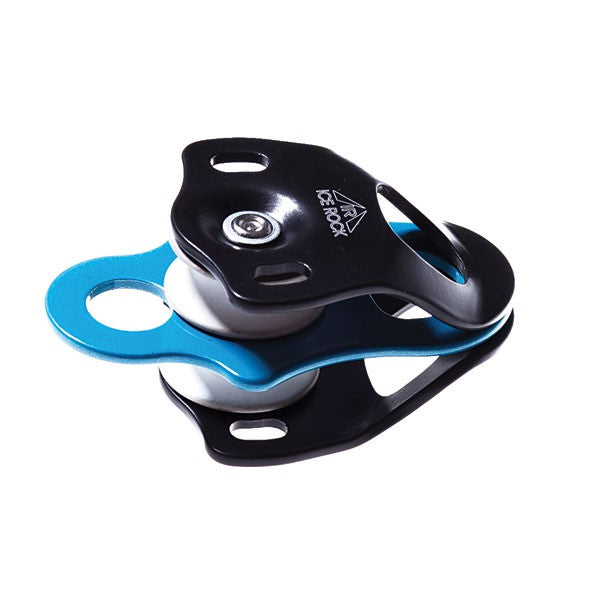

Duplex Small Double Pulley

The DUPLEX is a compact and lightweight double pulley device with a pair of sheaves arranged in parallel.

The shape of its side plates is specially designed for use with a Prusik friction knot in progress capture systems, simplifying lifting loads and setting up polyspasts.

The pulley is mounted on a steel ball bearing to maximize working efficiency. High precision of manufacturing on CNC machines ensures significant minimization of friction losses.

• Max rope diameter: 12 mm
• Weight: 137g
• Sheave diameter: 25 mm
• Max working load 2 x 1,5 kN x 2 = 6 kN
• Minimum breaking strength: 2 x 5, 5 kN x 2 = 22 kN
• Aluminum side plates and sheaves
• Steel ball bearing
• Dimension: 11cm x 6cm x 4cm
• Standard: EN 12278
