Best before April 2025. Storage life: 18 months - As indicated by G&B, the glass capsule could be used after this date if the resin is fluid in the capsule. As of today (June 11, 2025), the liquid retains its smooth, fluid consistency and appears identical to a new sample.

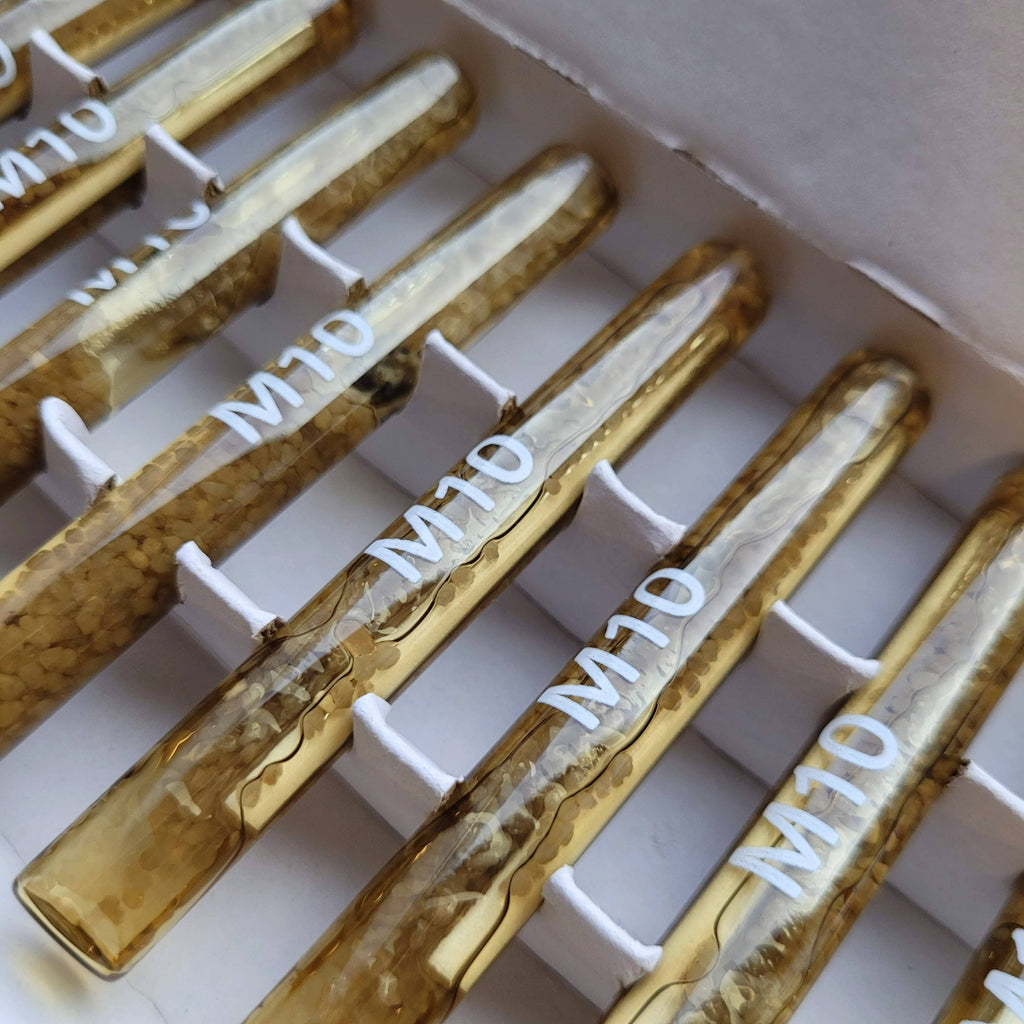

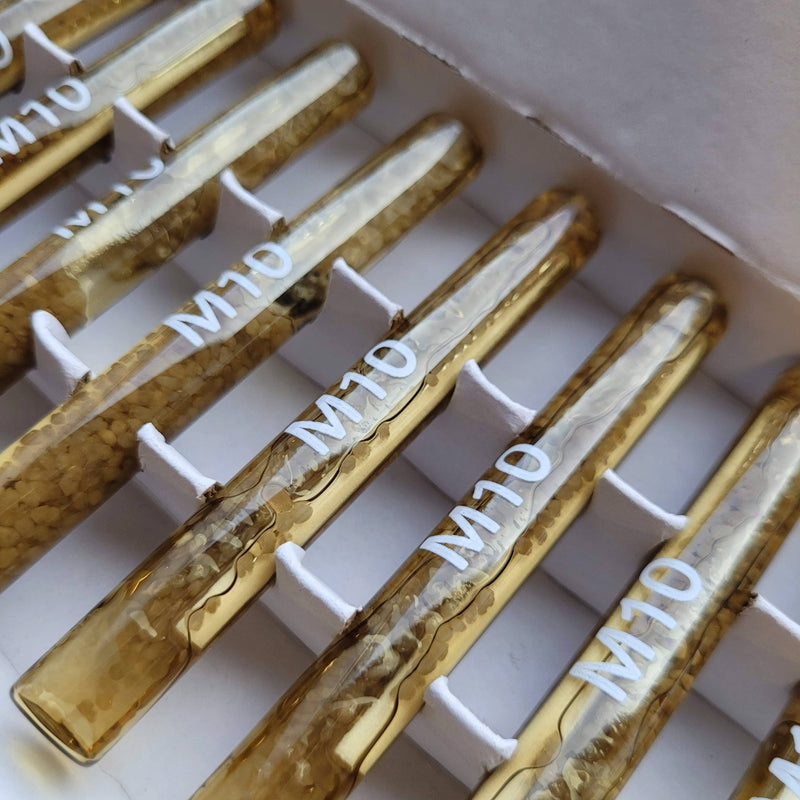

The GEBOFIX TF anchor system comes in a glass capsule, making installation straightforward. It contains a special vinylester resin and quartz sand, with a hardening catalyst located in a separate internal capsule. When you insert the anchor rod, the capsule breaks, instantly mixing the components to activate the curing process.
- Box of 10 capsules
- To use with M10 glue-in bolt (10mm)
- Recommended glue-in:
- Product code: C10
- Installation by roto-percussion (product recommendation: Raumer "Spinner" Device)
- CE approved option 8, for non-cracked concrete
- No expansion effects, so fixings with minimum edge distance and minimum spacing are allowed
- High pull-out values
- Water impermeable joint
- Fast and safe applications
- Low shrinkage
Application
For fixing heavy loads on natural stone and concrete supports. Recommended for fixing several high-value anchors with minimum spacing. Indicated for anchors (sectioned) steel concrete rebar (glue-in anchors). In case of high placing depth, use several capsules in a row.
- Temperature resistant up to 50 °C; for short periods up to 80 °C
- Application temperature: -5 °C up to 25 °C
- Storage temperature: 5 °C up to 25 °C
- Best before April 2025. Storage life: 18 months - As indicated by G&B, the glass capsule could be used after this date if the resin is fluid in the capsule. As of today (June 11, 2025), the liquid retains its smooth, fluid consistency and appears identical to a new sample.
- Made in Italy
